FEBCO 825Y In-Line Pattern Reduced Pressure Zone Assembly 1-1/4 in. with Ball Valves

FEBCO 825Y In-Line Pattern Reduced Pressure Zone Assembly 1-1/4 in. with Ball Valves

Original price was: $230.55.Current price is: $133.72.

SKU: 67875 Category:

Description

  • Bronze body
  • Modular relief valve for easy maintenance
  • Replaceable seat rings for longer valve life
  • NPT end connection
  • Meets all specifications of AWWA, ASSE
  • Low head loss for optimum performance
  • Quarter turn ball valves
  • Stainless steel springs
  • Nitrile elastomers
  • Reduced Pressure Zone Assembly

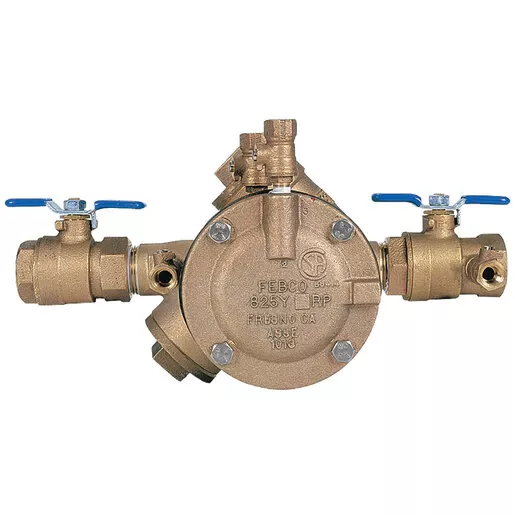

This 1 1/4 inch Y pattern reduced pressure zone backflow preventer assembly is designed to prevent the reverse flow of high hazard (toxic) fluids found in the water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is used in water services to industrial plants, hospitals, morgues, mortuaries, and chemical plants and is also used in irrigation systems, boiler feed, water lines and other installations requiring maximum protection. This assembly consists of a bronze body, threaded quarter turn ball valves, test cocks, spring loaded Y pattern check valves, and one hydraulically dependent differential relief valve.
Series:825Y In-Line Pattern
Connection Type:NPT
Pressure Rating:175 PSI
Connection Size:1-1/4 in.
Body Material:Cast Copper, Silicon Alloy
Item:Pressure Assembly
Type:Backflow
Includes:with Ball Valves
Regulated: No
Brand Name:FEBCO
