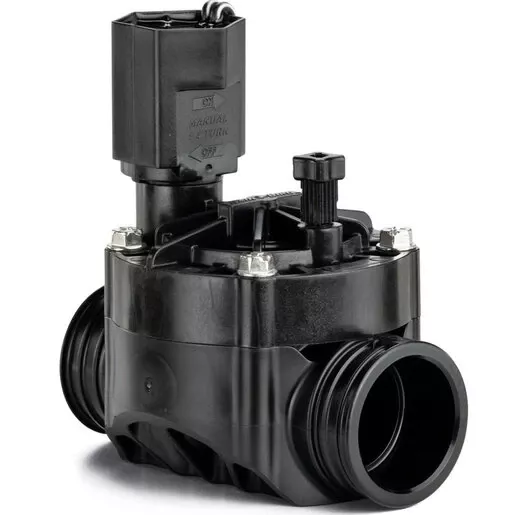

Rain Bird HVF In-Line Valve Plastic 1 in. w/ Flow Control Slip x Slip

Rain Bird HVF In-Line Valve Plastic 1 in. w/ Flow Control Slip x Slip

Original price was: $5.70.Current price is: $3.66.

SKU: 338400 Category:

Description

  • Eccentric diaphragm for smooth closing, less water hammer
  • Captive multi-drive screws for ease of access and faster bonnet removal
  • Four screws for quick access to diaphragm
  • Reverse flow normally closed design
  • Double-filtered pilot-flow design for maximum reliability
  • Balanced pressure diaphragm for long life
  • Buna-N diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and stainless steel spring


Rain Bird HV valves install quickly, service easily, and deliver reliable performance you can count on – all at an affordable price. A more compact design makes it easier to install and allows you to put more valves in a single valve box. Heavy-duty construction and fewer screws simplify maintenance. Its reverse-flow design is engineered to stand up to the diverse and challenging needs of any landscape. Like all Rain Bird valves, HV Valves are built to work with any standard sprinkler timer.
Connection Type:Slip
Connection Size:1 in.
Body Material:Plastic
Type:In-Line
Series:HV Series
Solenoid Type:AC
Operating Type:Electric
Flow Control:Yes
InletSize:1 in.
Height:4-3/5 in.
Width:3-1/3 in.
Maximum Flow Rate:30 GPM
Voltage Rating:24V
Outlet Size:1 in.
Minimum Flow Rate:0.2 GPM
Outlet Connection:Slip
Inlet Connection:Slip
Item:Electric Valve
Dimensions:4-3/5 in. x 4-2/5 in. x 3-1/9 in.
Minimum Operating Pressure:15 PSI
Maximum Operating Pressure:150 PSI
Maximum Working Temperature:110 F
Connection 2 Size:1 in.
Connection 2 Type:Slip
Regulated: No
Brand Name:Rain Bird
